DuraMAX360 360° industrial connector

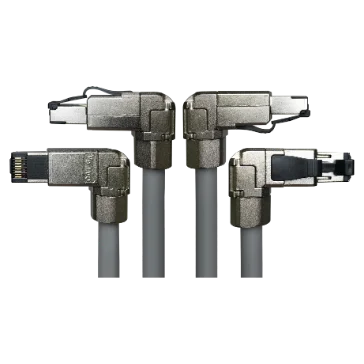

This 360° industrial plug allows the cable to exit to the left, right, up or down.

CAT6A industrial connector

There are situations where it is recommended to use a shielded network cable and corresponding connector. Consider industrial environments or situations where there are devices that emit electromagnetic radiation.

DINTEK has Industrial Plugs in its range for this purpose. The design and materials used in these plugs guarantee maximum shielding against sources of interference.

DINTEK’s standard industrial plug carries the cable straight out back. This CAT6A 360° industrial plug allows the cable to exit to the left, right, top or bottom. Ideal in situations where there is not much space behind the connector, but a shielded connector is desired.

In addition to its good insulating properties, the plug is also easy to install. The ezi-CONNECT™ system used allows the connector to be made to the cable even in harder-to-reach places.

Product number N1505-05005

CAT6A DuraMAX360 360° industriële connector, N1505-05005


  • Dimensions 45.5mm (L) x 13.8mm (W) x 27mm (H)
  • IDC wire gauge 22~26AWG
  • Storage temperature -40℃ to +70℃
  • Operational temperature -10℃ to +60℃

DuraMAX360 360° industrial connector


N1505-05005 - certificates


N1505-05005 - datasheet
