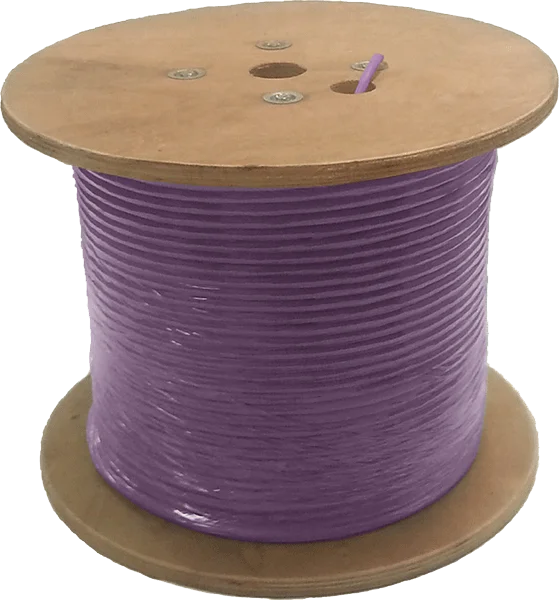

CAT6 U/UTP LSZH cable, 500m Eca, violet

500 meters of network cable supplied on a roll with an Ezi-flow mechanism for easy deployment during an installation

Gigabit High Speed Ethernet

The PowerMAX500TM CAT6 U/UTP LSZH cable is the ideal solution when high-quality unshielded twisted-pair cabling is required. This cable consists of 8 conductors twisted in pairs. Because the cores twist, the network cable is protected from electromagnetic interference. UTP cabling stands for unshielded twisted pair and is particularly suitable for home and small business use.

This CAT6 U/UTP cable has an AWG value of 23 with an LSZH (Low Smoke Zero Halogen) jacket. Thus, the size of the conductor reduces heat generation and voltage drop over distance. The cable meets all fire classification standards, including European Eca standards. This means that the cable minimizes the risk of the after-effects of an electrical fire, such as inhalation of gas and smoke.

Product number N1101-04025

CAT6 U/UTP N1101-04051 CAT6 U/UTP LSZH kabel, 305m Eca, violet

Plug and crimping tool

DINTEK’s Pass through crimping tool makes it easy to attach a DINTEK ezi-PLUG to a cable. The plug allows the rotation in each wire pair to be maintained as close as possible to the contact of the plug. This will increase the performance capacity of the vein pair.

Combine the Pass through plug with the RJ45 boots and use the Pass through crimping tool for the termination.


CAT6 stands for Category 6 and support gigabit Ethernet segments up to 100 meters. This DINTEK PowerMAX500TM cable has been tested over 500 MHz. Also, this DINTEK cable has shown performance test results enabling 10Gbit Ethernet transmission up to a length of 70 meters. The cable is certified to handle PoE ++ and 4PPoE – IEEE 802.3bt level 3 & 4 and comes in box without molded-on connectors.


  • Length 500 meters
  • Color violet
  • Type U/UTP LSZH cable
  • Category CAT6

Server space

Keystones and patch panels from DINTEK can be used to terminate cabling in a patch cabinet.


N1101-04025 - datasheet
