Optical Time Domain Reflectometer

Fast and accurate measurements, suitable for both Multimode and Singlemode fiber optics.

Optical Time Domain Reflectometer

With the Optical Time Domain Reflectometer (OTDR), DINTEK responds to the growing need for reliable and easy-to-use field test instruments for installation and maintenance of fiber optic networks suitable for Multimode and Singlemode, enabling users to make fast and accurate measurements.

The Optical Time Domain Reflectometer behaves like a cable radar, sending a pulse through the fiber and checking for a return signal. This produces a “trace” of the fiber measurement. It can be used to measure optical loss, length and item positions, connector and splice integrity.

The OTDR meets a wide range of testing and measurement needs in analyzing optical networks from access to core. It is intended for testing FTTx, PON, CATV, LAN, access and metro network fiber connections. With IP65-level protection, a 7-inch anti-reflection LCD screen, optional PON test, MMF test modules and a multilingual display, this OTDR comes in a comfortable carrying case.

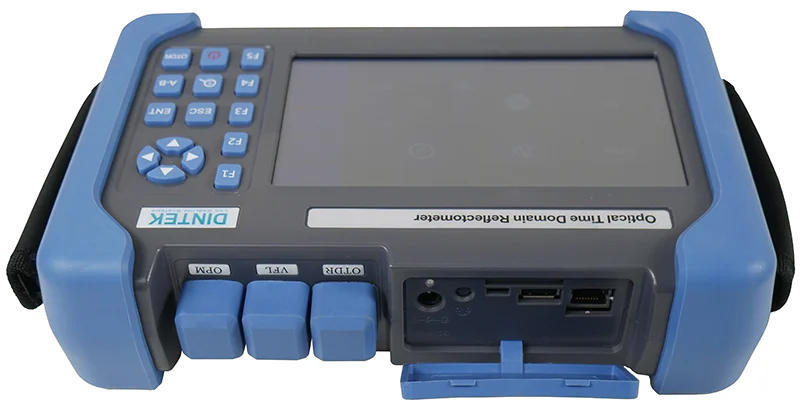

Product number N6202-03010

Optical Time Domain Reflectometer


  • IP65 protection level
  • 7-inch anti-reflective LCD screen
  • MMF test module (850/1300/1310/1550nm) is optional
  • PON online test module (1625nm) is optional
  • Support multilingual input and display


  • FTTX testing with PON networks | CATV network testing
  • Access to network testing | LAN network testing
  • Metro network testing | Laboratory and factory testing
  • Troubleshooting fiber optic problems
  • Suitable for Multimode and Singlemode fiber optics

Renting the Optical Time Domain Reflectometer?

Want to use fiber optic measurement devices without purchasing them? Then you can, we rent DINTEK fusion splicers and Optical Time Domain Reflectometers. Contact Xpert Data (importer/distributor) for more information.
