DCT-010 cable and PoE tester

Simple operation and accurate diagnostic capabilities

Robust and reliable solution

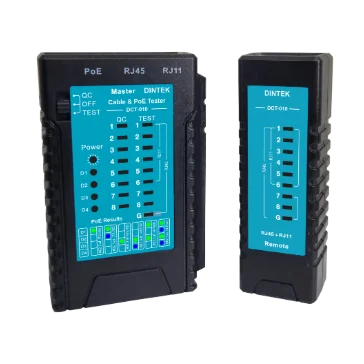

The DINTEK DCT-010 cable and PoE tester is a rugged and reliable solution designed for network professionals who demand efficiency and accuracy when testing cables. This compact device provides a versatile way to ensure the integrity of RJ11 and RJ45 cables, ensuring your network installations and cabling projects run smoothly and trouble-free. The DCT-010 excels with its simple operation and accurate diagnostic capabilities. The device effortlessly detects wiring faults such as open circuits, short circuits and misconnected pairs. In addition, it performs quality checks of RJ45 connectors and supports PoE testing. Its bright and easy-to-read indicator lights provide instant feedback, which is crucial when setting up new networks, troubleshooting existing connections, or performing routine network checks.

Product number N6201-01006

User-friendly interface

With a durable design and user-friendly interface, the DINTEK DCT-010 is ideal for both ICT professionals and network cabling installers. The device ensures that every connection meets high quality and reliability standards. Choose the assurance of optimal network performance with the DCT-010, an indispensable tool for any network professional.

Characterize

  • Continuity testing; effortlessly check for open circuits, breaks, short circuits, reverse wiring and correct connections.
  • QC testing: efficient testing of RJ45 and RJ11 plug crimp connections to ensure reliable connection.
  • PoE testing; easily identify PoE type and power, for quick evaluation of Power over Ethernet applications.
  • Compatibility with PoE standards; supports IEEE 802.3af and 802.3at standards, ensuring wide applicability in modern networks.
  • Suitable for multiple configurations; supports both RJ45 and RJ11 connectors for maximum flexibility.
  • Certifications; meets RoHS, FCC and CE standards, representing safety, environmental friendliness and reliability.
  • Low battery warning; avoid unexpected interruptions thanks to a convenient low battery warning.

Patch Cord test

Specifications

Characteristic Value
Maximum Test Distance 2000m
RJ45 Plug Category Cat.5e, Cat.6, Cat.6A
RJ11/12 Plug Category Cat3 (6P2C/6P4C/6P6C)
QC-test for RJ45 Plugs
Wiremap Results Open / Crossed / Short / Reversed / Pass
PoE Presence Detection
PoE Standards Identified 802.3af / 802.3at
Power Supply 9Vdc
